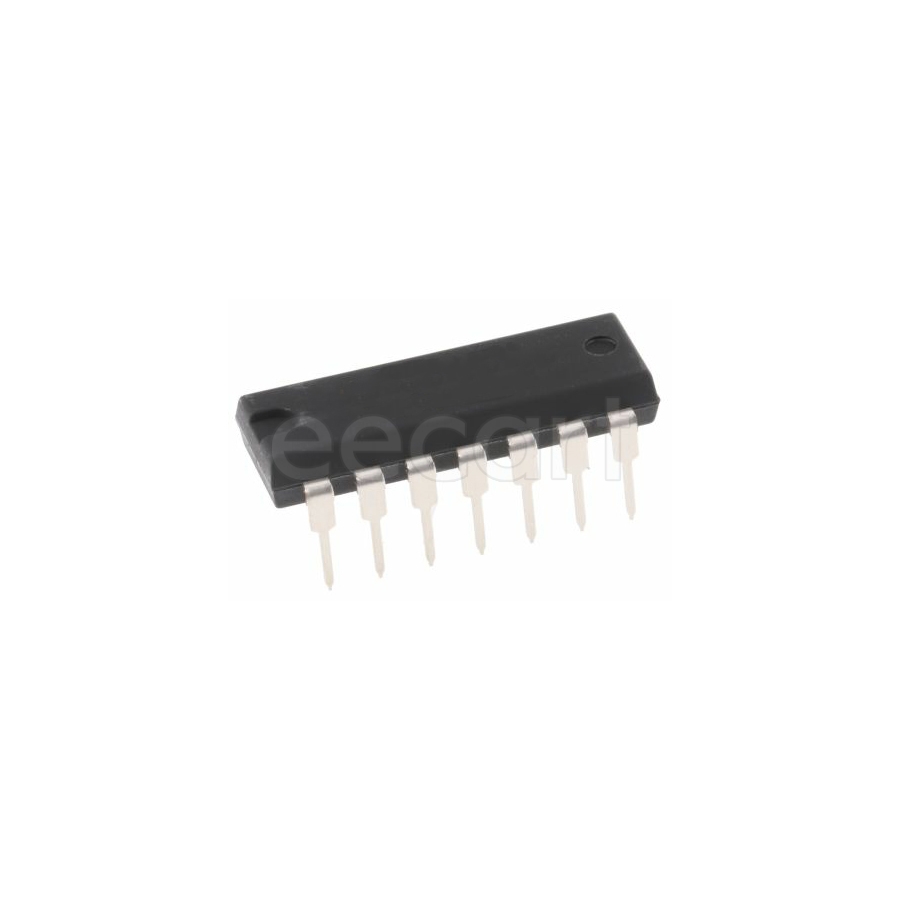

CD74AC08E
Manufacturer:
Texas Instruments
Mfr.Part #:
CD74AC08E
Datasheet:
Description:
Logic Gates, Inverters PDIP-14 Through Hole AND AC Low Level Output Current:24 mA High Level Output Current:-24 mA Logic Level - Low:0.3 V to 1.65 V Logic Level - High:1.2 V to 3.85 V
| Parameter | Value |
|---|---|
| Length | 19.3 mm |
| Width | 6.35 mm |
| Termination | Through Hole |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 14 |
| Height | 5.08 mm |
| Thickness | 3.9 mm |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Elements | 4 |
| Output Current | 24 mA |
| Number of Circuits | 4 |
| Lifecycle Status | Production (Last Updated: 5 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.5 V |
| Max Output Current | 24 mA |
| Number of Bits | 4 |
| Turn-On Delay Time | 7.9 ns |
| Quiescent Current | 4 µA |
| Propagation Delay | 8.7 ns |
| High Level Output Current | -24 mA |
| Low Level Output Current | 24 mA |
| Logic Function | AND |
| Number of Inputs | 2 |
| Number of Outputs | 1 |
| Number of Gates | 4 |
| Number of Input Lines | 2 |
| Number of Output Lines | 1 |
| Schmitt Trigger Input | No |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 5 days ago) |
| Packaging | Tube |
| RoHS | Compliant |
| Logic Family | AC |
| Logic Level - Low | 0.3 V to 1.65 V |
| Logic Level - High | 1.2 V to 3.85 V |
